This machine is used to make paper shopping bags with flat handles inline (handles folded inside the bag or upright when coming out) fully automatically.
Handle type :
flat handles (overfolded and upright)ZD-FD380QZ/480QZ Reel Feeding Paper Bag Machine With Rope/flat
Handles And Over-folding

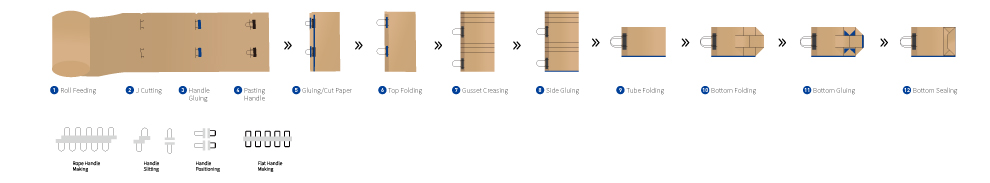

This machine is specially designed to make paper shopping bags with top over-folding and with handles inline. The handles will be delivered to handle cutting, handle delivery, handle patching and over-folding units after being produced by the handle making unit with the raw material of paper rope and paper patch roll. Afterwards, the machine will D cut the paper sheets, glue the handle patching position and patch the handles. It cut the reel paper to paper sheets first before delivering them to over-folding unit. The main machine forms the paper bag in one process from side gluing, tube forming & cutting, bottom creasing & gluing and forming to bags collection. The whole process is completed simultaneously and full automation is achieved. Much labor cost can be saved.
Product Details
Model | ZD-FD380QZ | ZD-FD480QZ |
Paper sheet width | 530-1230 mm | 590-1510mm |
Max. dia of paper roll | φ1500 mm | φ1500 mm |
Inside dia of paper roll | φ76 mm | φ76 mm |
Paper gram | 100-200 g/㎡ | 100-200 g/㎡ |
Paper sheet length | 340-640 mm | 420-830 mm |
Finished bag width | 180-380 mm | 200-480 mm |
Paper tube length | 280-580 mm | 360-770 mm |
Bag bottom width | 70-220 mm | 80-260 mm |
Top folding width | 40-60 mm | 40-60 mm |
Max production speed | 110 bags/min | 100 bags/min |
Working air current | 0.6-0.8MPa | 0.6-0.8MPa |
Total power | 380V 3P4L 57KW | 380V 3P4L 57KW |
Weight | 25500 KG | 28500KG |
Overall dimensions | 17800*4700*3200 mm | 188005700*3300 |
Product Video
Product Unit Introduction:
FEEDING UNIT The roll paper fixed on the air expanding mandrel can be fed by swing arm which is equipped with lifting hydraulic system. With an alarm function, the feeding unit will sound alarm when there is no paper feeding. Improved surface smoothness of the paper during the feeding is achieved due to the web guide and uniform tension control. Paper rolls can be easily changed by pressing a button. |
|
JAPANESE SERVO MOTORS SYSTEM
The machine is controlled by Mitsubishi servo motors. Bags lengths and widths can be adjusted automatically. |
|
BAG'S BOTTOM FOLDING UNIT The drum for bottom folding, is with air-suction system, suitable for wide gram range of the raw paper. |
|
BAG FORMING UNIT Form the paper with patches and side glue into the tube; and cut into separate pieces based on the settings. Afterwards, these separate tubes will be sent to the drum to open the four corners, then bottom gluing, sealing and form the square shape consequently. |
|
BAG COLLECTING UNIT Compress the bags and output the finished bags. The number of paper bags processed can be displayed by the automatic collection and counting system. |
Brief Introduction
This machine is specially designed to make paper shopping bags with handles inline fully automatically. The handles will be delivered to the main machine after being produced by the handle making unit, and being cut and pasted to the paper. This machine can form the paper bag in one process from the paper roll, handle patching, side gluing, tube forming & cutting, bottom creasing & gluing and forming to bags collection in the control of servo motors (Mitsubishi brand, imported from Japan) to ensure the high precision and stability, simple maintenance and high efficiency. Thus it is an ideal equipment for printing houses and paper bag manufacturers.
